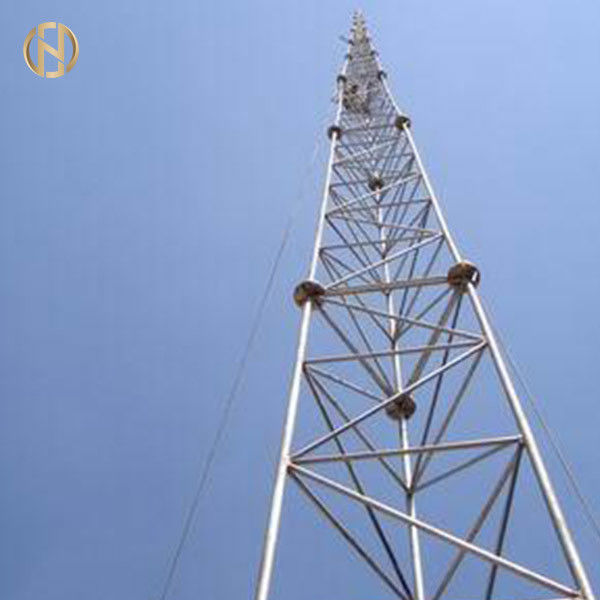

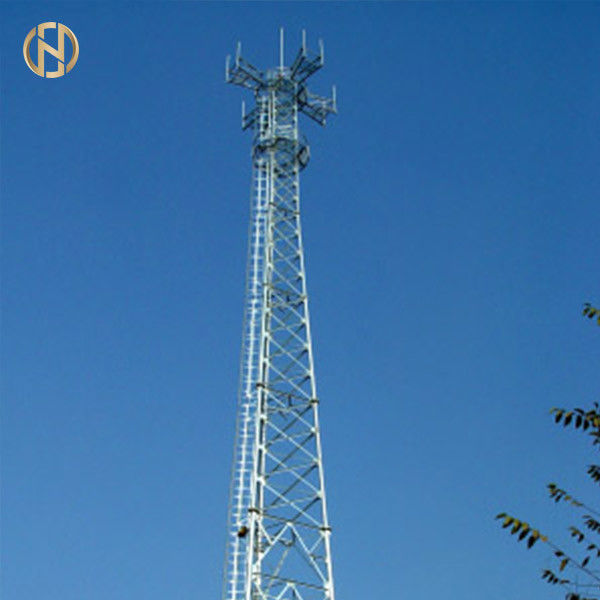

230kv galvanised power pole tranmisson tower , monopole tower steel tower 45m
Product Description
The products above are 230kv galvanised power pole tranmisson tower , monopole tower steel tower 45m for pakistan market.
To design in accordance with PLS-Tower software, we will require the following design parameters:
Product Specifications
138kv &230kv Galvanized steel pole for karachi Electric Supply Company Karachi,Pakistan.
& need of following type of poles for 132 kv & 230 kv lines;
The specification reference the following standards
| ASCE/SEI 48: | Design of steel transmission pole structures |
| BS EN ISO 1461 : | Hot dip galvanized coatings on fabricate d iron and steel articles. Specification and test methods. |
| ASTM A123 : | Standard specification for zinc (hot galvanized) coating on Iron and Steel Products |
| ASTM A 153/A153M : | Standard specification for zinc (hot galvanized) coatings on iron and steel Hardware |
Design as follows:
| Section-I | Section-II | Section-III | Section- IV | X-arms | |
| Light angle tower | 200x10x6000 | 125x10x6000 | 100x8x8000 | 75x6x8000 | 280x8 x130 |
| Medium angle tower | 200x12x6000 | 140x10x6000 | 125x8x8000 | 75x8x8000 | 200x8x430 |
| Heavy anglle tower | 200x12x6000 | 140x10x6000 | 125x10x8000 | 80x10x8000 | 130x8280 |
Packaging & Shipping
We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
FAQ
| Q1. How can I get a price of needed pole? |
|
A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications. 2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing. |
| Q2. I am a small wholesaler; do you accept a small order? |
| A: It's not a problem if you are a small wholesaler; we accept orders of various quantities. |
| Q3. I am a designer; Can you help me to produce the sample which we designed? |
| A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have. |
| Q4: We want be your agent for our area. How do I apply for this? |
| A: Please send your proposal and your company profile. |
| Q5. Tell me about your company? |
| We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world. |
| Q6. Do you have some special policies for Branded companies? |
| A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market. |
| Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance. |
| A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money. |
Our Service
1. We will reply all your enquiries in 24 working hours.
2. Experienced staff members will answer all your questions in fluent English.
3. Customized designs are available. UEM & UBM are welcome.
4. Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributors.
6. State of the Art Factory with highly specialized machinery focused on producing various types of steel poles with over 20 years of experience and expertise to deliver you quality products that you can trust at competitive prices.
Our products are sold all over the world, you can rest assured.
